trinnov

Amplitude16

Power Amplifier

A 16-channel powerhouse built for reference-grade home cinemas - compact, flexible, and brutally precise.

16 channels, one chassis - Delivers 200W per channel into 8 ohms (400W into 4 ohms), all from a sleek 3RU enclosure.

Bridgeable output - Bridge any pair of channels for 800–1000W of dedicated power to LCR or subwoofer channels.

Class-leading performance - Ultra-low THD+N (0.0015%) and 126 dB signal-to-noise ratio ensure detail, dynamics, and silence between.

Designed for the Altitude - Calibrated to match the Altitude16 and Altitude32, with seamless DB25 connectivity.

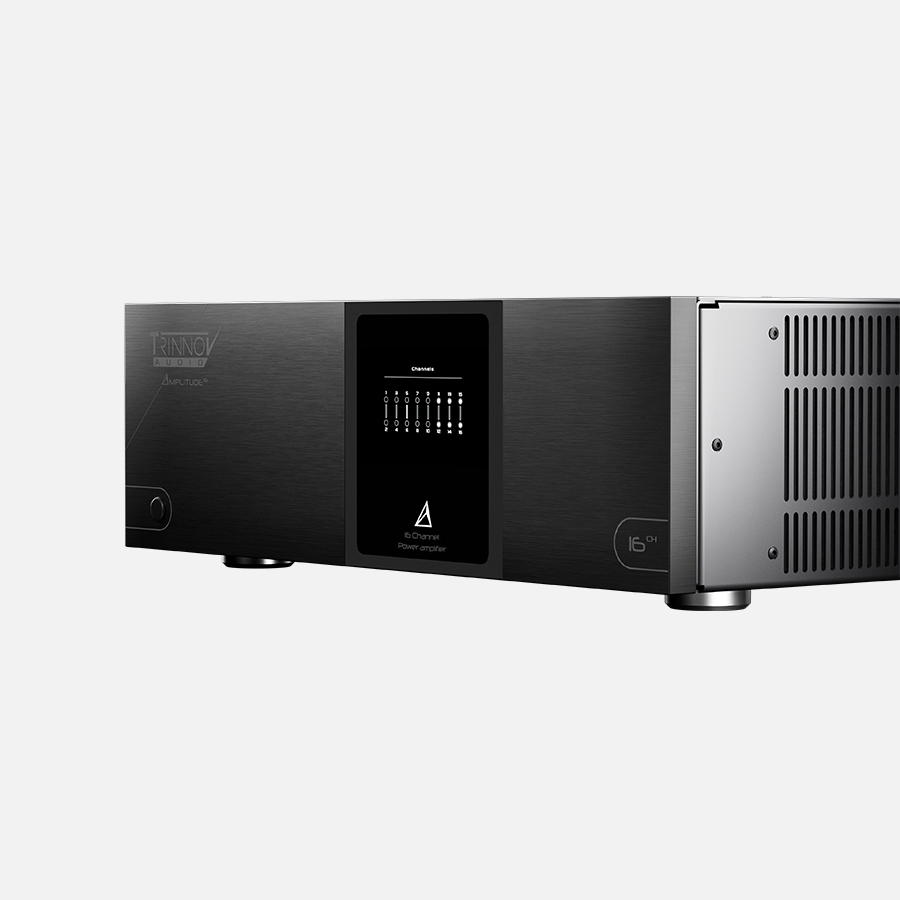

The Trinnov Amplitude16 is the ultimate multi-channel amplifier for serious home cinema installations.

Featuring 16 channels of pristine class-D amplification in a compact 3RU chassis, it delivers over 3,000 watts of total power and unmatched dynamic headroom. Whether you're running a full Atmos setup or powering high-demand LCR channels in bridge mode, the Amplitude16 handles it all - quietly, efficiently, and without compromise.

Engineered in collaboration with ICEpower and built to pair perfectly with Trinnov’s Altitude processors, it's everything you want from a high-performance amplifier - without the clutter.

Channels: 16 (bridgeable to 8)

Power output: 200W @ 8Ω / 400W @ 4Ω per channel

Bridged output: 800W @ 8Ω / 1000W @ 4Ω per bridged pair

Peak power: Up to 6,080W total output

THD+N: 0.0015%

Signal-to-noise ratio: 126 dB (A-weighted)

Inputs: 2× DB25 analog inputs (Tascam pinout)

Outputs: 16× binding posts

Control: Front panel status LEDs, 12V trigger I/O

Cooling: Smart fan control with side venting

Optional: AoIP (Dante/AES67) expansion board

Dimensions: 442 x 132 x 445 mm (3RU)
