Trinnov

Ovation2

Digital Cinema Processor

The next generation of cinema processor

Trinnov performance guaranteed: To maintain world-leading fidelity, Trinnov is known for having all audio boards designed and manufactured by Trinnov.

‍

Digital and analog outputs: The new Ovation 16/16 version proposes up to 16 channels AES outputs mirroring its analog outputs. With this feature, you can now use an amplifier with digital inputs as well as analog inputs.

‍

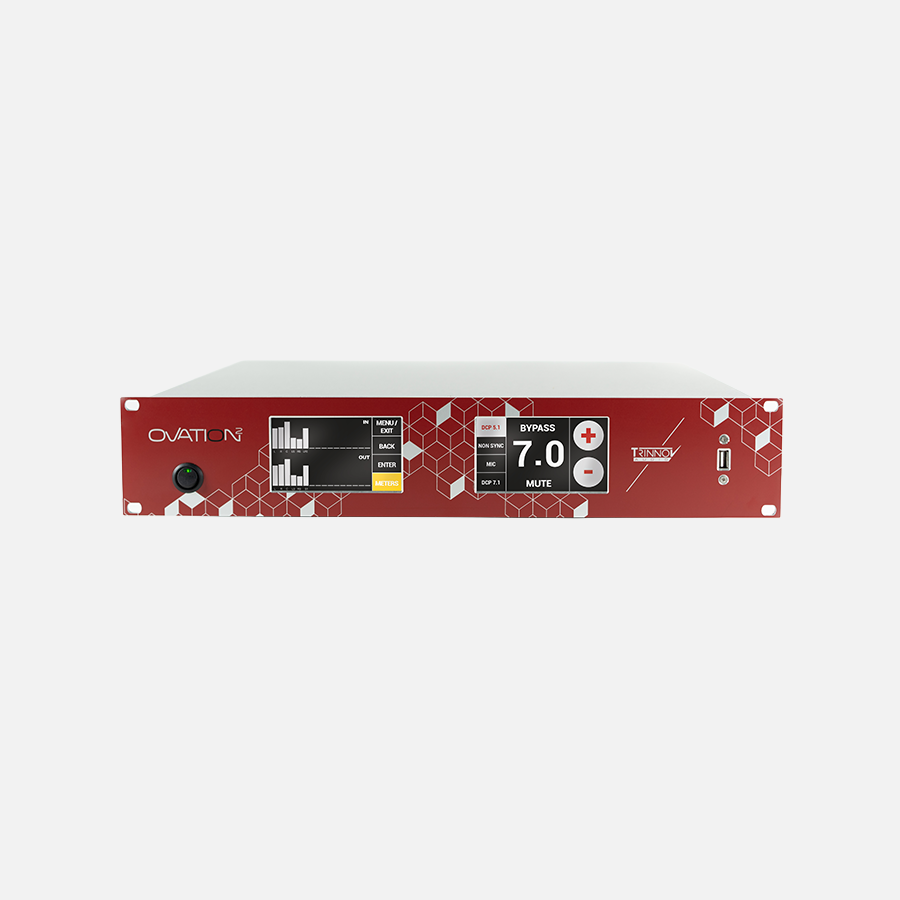

Tactile screens: Trinnov redesigned the front panel around 2 touch screens, offering cinema engineers and end users much better ergonomics and a more modern user experience.

Re-designed power supply: At the heart of Ovation2, is a brand new power supply designed with the highest requirements in mind to offer better overall performance and stability in compliance with the world's most demanding specs and certifications.

Introduced in 2013, the Ovation changed the way engineers calibrate cinema sound over the sound paradigm of Time / Phase / Frequency. Since 2019, the Ovation2 retains all the significant benefits of its predecessor while introducing futuristic enhancements to push the boundaries of cinema sound once again.

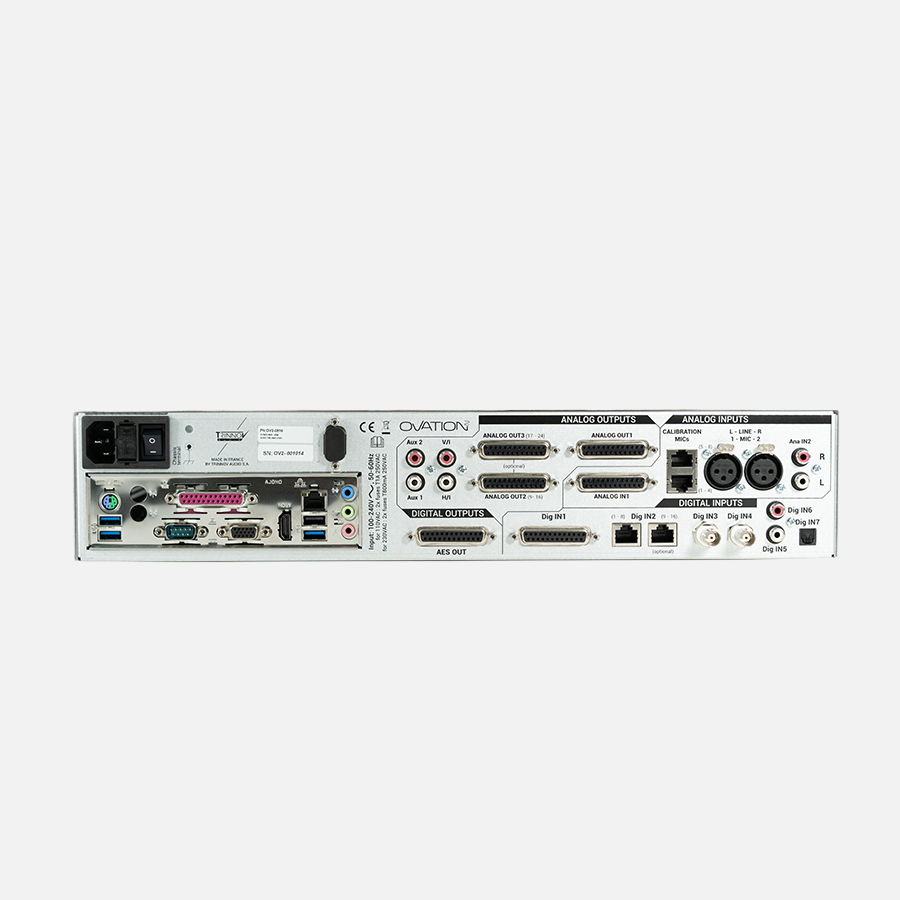

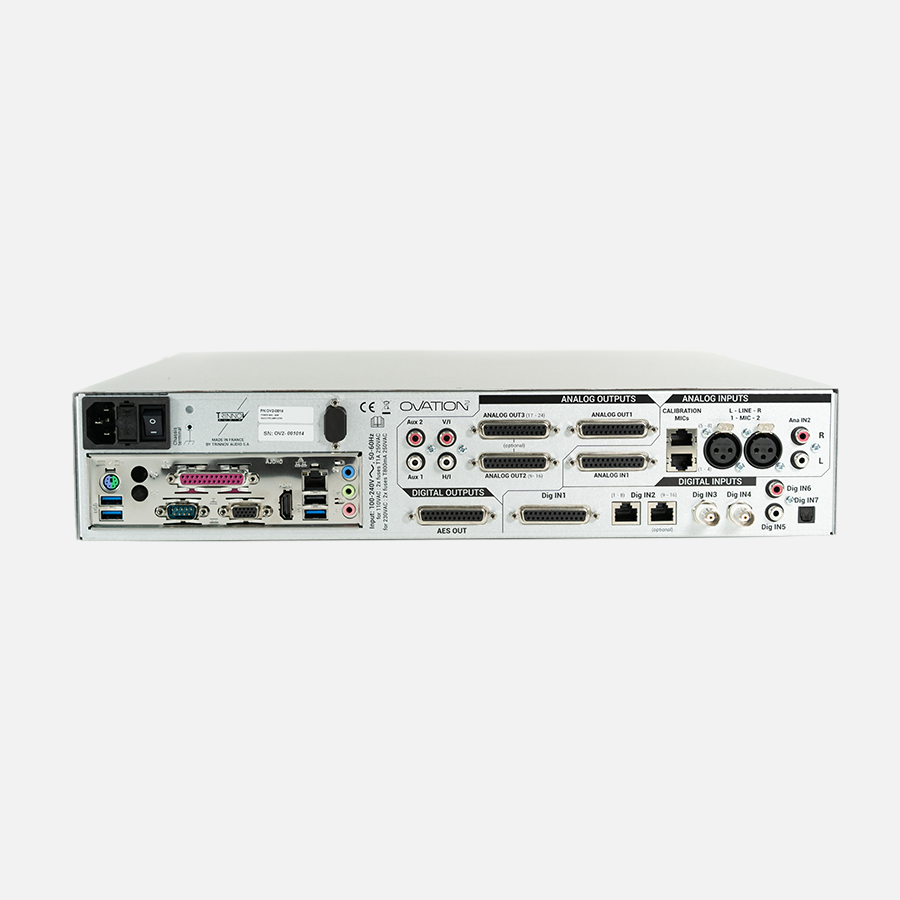

Analogue audio inputs (DB25): 8

Analogue audio outputs (2 x DB25): 16 (including bi/tri-amp and bass management)

Optional balanced outputs (1x DB25): 24 (adding quad-amp / bass management / additional configurations)

Digital input connectivity: AES DCI (DB25) x 16, AES DCI (RJ45) x 16, SPDIF (BNC) x 2, SPDIF (RCA) x 2, SPDIF (Toslink) x 1

Control and integration options: Web GUI, ethernet, VNC (network), VGA monitor and mouse

ADC resolution / sampling rate: 24 bits/96 kHz

DAC resolution / sampling rate: 24 bits/96 kHz

Dimensions: (W x H x D): 438 x 138 x 430 mm

Weight: 9.8 kg

Power: 100-240v (auto selecting, 40W power consumption

Warranty: 2 years

download spec sheet
