CONNECT 1504 LEA Professional connect-1504 Amplifier High power smart amp | 4 channels | 1500 Watts per channel
No items found.

LEA Professional

CONNECT 1504

Amplifier
High power smart amp | 4 channels | 1500 Watts per channel

3 ways to connect: 1. Built-in Wi-Fi access point, 2. Existing Wi-Fi network, 3. Local area network.

Web browser-based UI: Works on any web browser on any device with no software downloads.

Cloud control: Remote control and monitoring from anywhere in the world, no VPN needed.

Direct low-Z & Hi-Z: 70V or 100V selectable per channel.

Smart power bridge: Double the power any single channel without sacrificing other amp channels.

Highly efficient Class-D output stage: For low AC current draw.

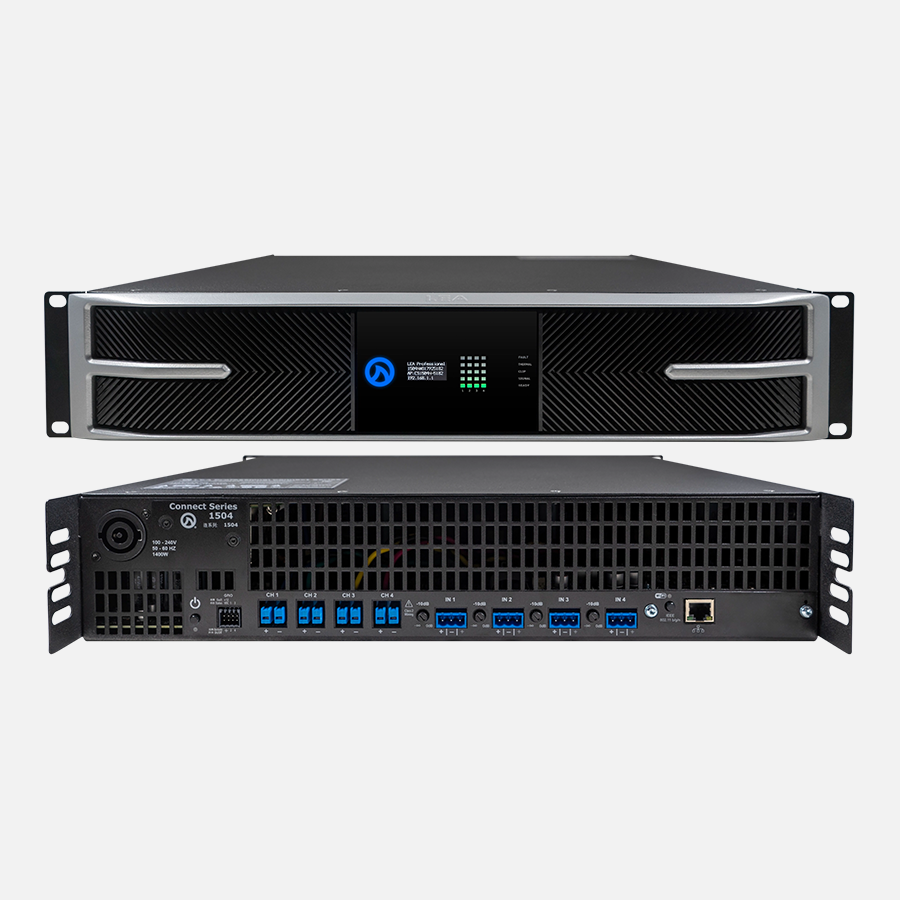

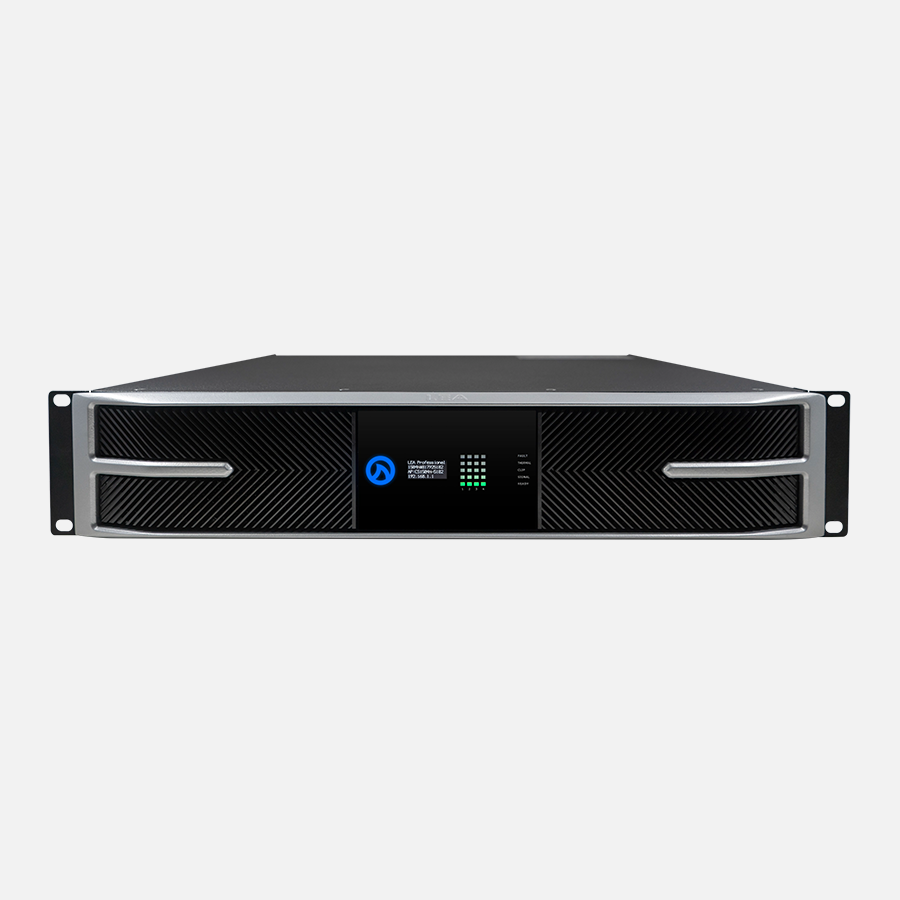

The CONNECT 1504 high-power loT-enabled smart amp. This four-channel model drives 1,500 Watts per channel (into 2, 4, and 8 ohms as well as 70Vrms and 100Vrms).

This addition to the CONNECTSERIES is available in Network Connect and Dante Connect versions, including both Dante and AES 67 connectivity options.

With three different methods of network connection, users can connect using the amplifier’s built-in Wi-Fi access point, connecting to an existing Wi-Fi network, or using a local area network ethernet connection.

  • 4 channel x 1500 Watt @ 4Ω, 8Ω, 70V and 100V per channel.
  • Advanced DSP w/ FIR crossovers.
  • IoT device with built in Wi-Fi hotspot.
  • Wi-Fi or fast ethernet connectivity.
  • Highly efficient power supply with Class-D output stage.
